Digital Thermostat Controller - Eliwell ID Plus 974

Power Supply: 230VAC ±10%, 50/60 Hz

Power Consumption: 3 - 4.5W

Operating Temperature: -5 to +55°C

Storage Temperature: -30 to +85°C

Humidity: 10–90% RH (non-condensing)

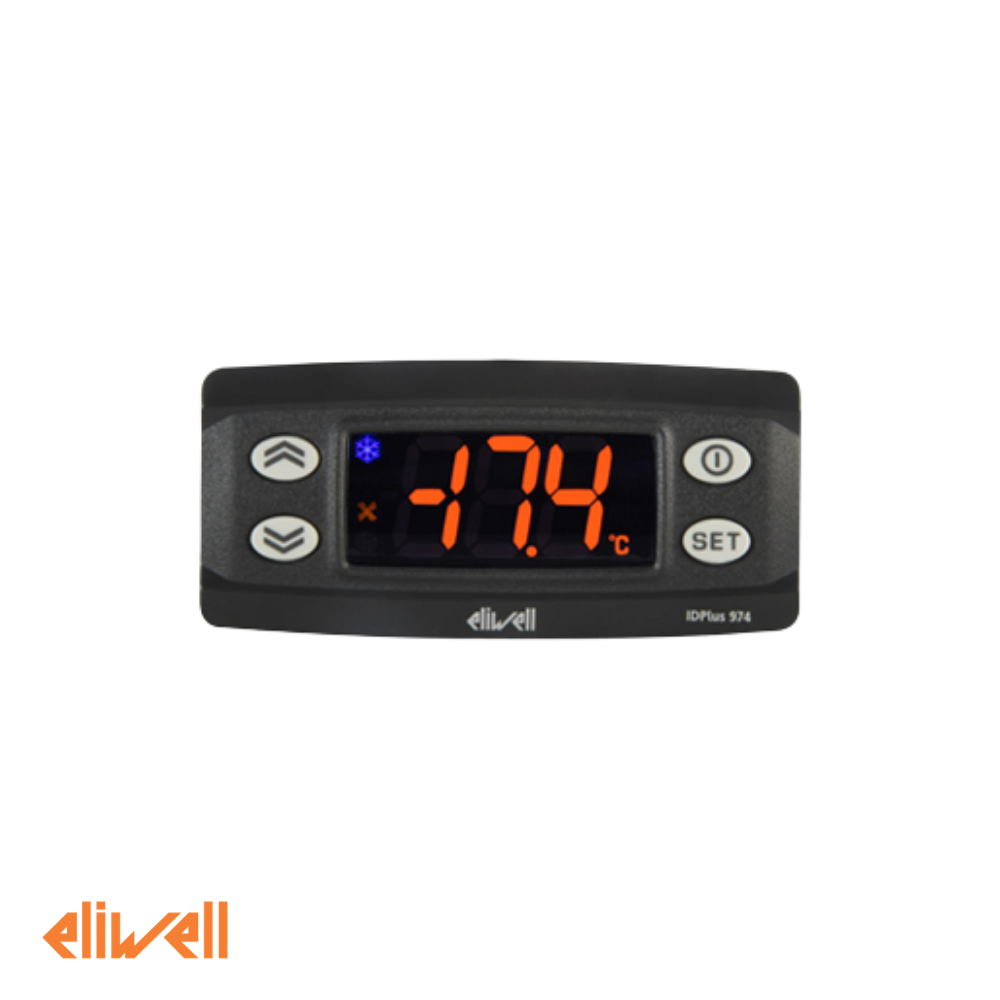

Display: 3-digit LED + status icons

Resolution: 0.1°C or 1°C (configurable)

Accuracy: Better than ±0.5% F.S. + 1 digit

Measurement Range: -55°C to +150°C

Sensor Type: Supports 2 analogue inputs, configurable as NTC, PTC, or PT1000 probes.

Digital Inputs: 1 × SELV digital input.

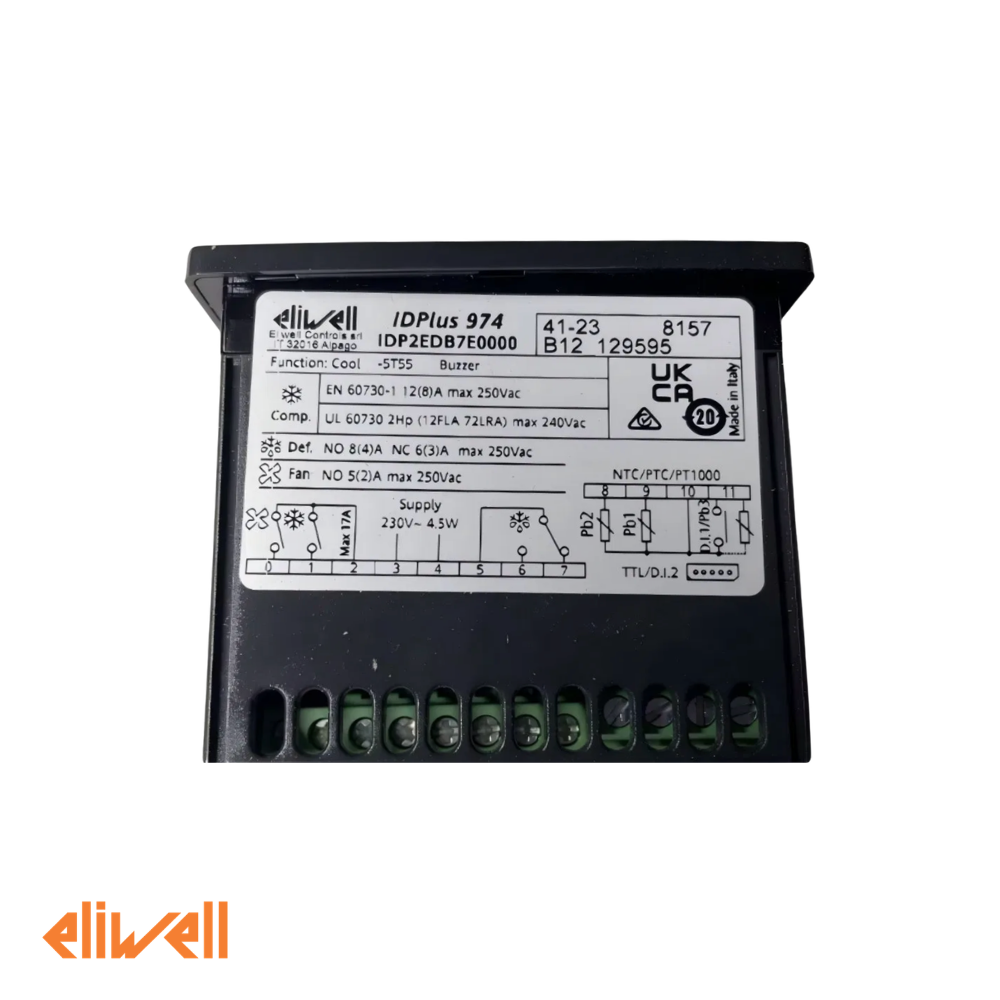

Relay Outputs:
- 1 × SPST 2 HP 12(12)A 250VAC – Compressor
- 1 × SPDT ½ HP 8(4)A 250VAC – Defrost (NO/NC)
- 1 × SPST 5(2)A 250VAC – Evaporator Fan

Communication: TTL port (Copy Card / Unicard USB / Televis / Modbus gateway)

Panel Cut-Out: 71 × 29mm

Controller Dimensions: 79 × 37 × 59mm
