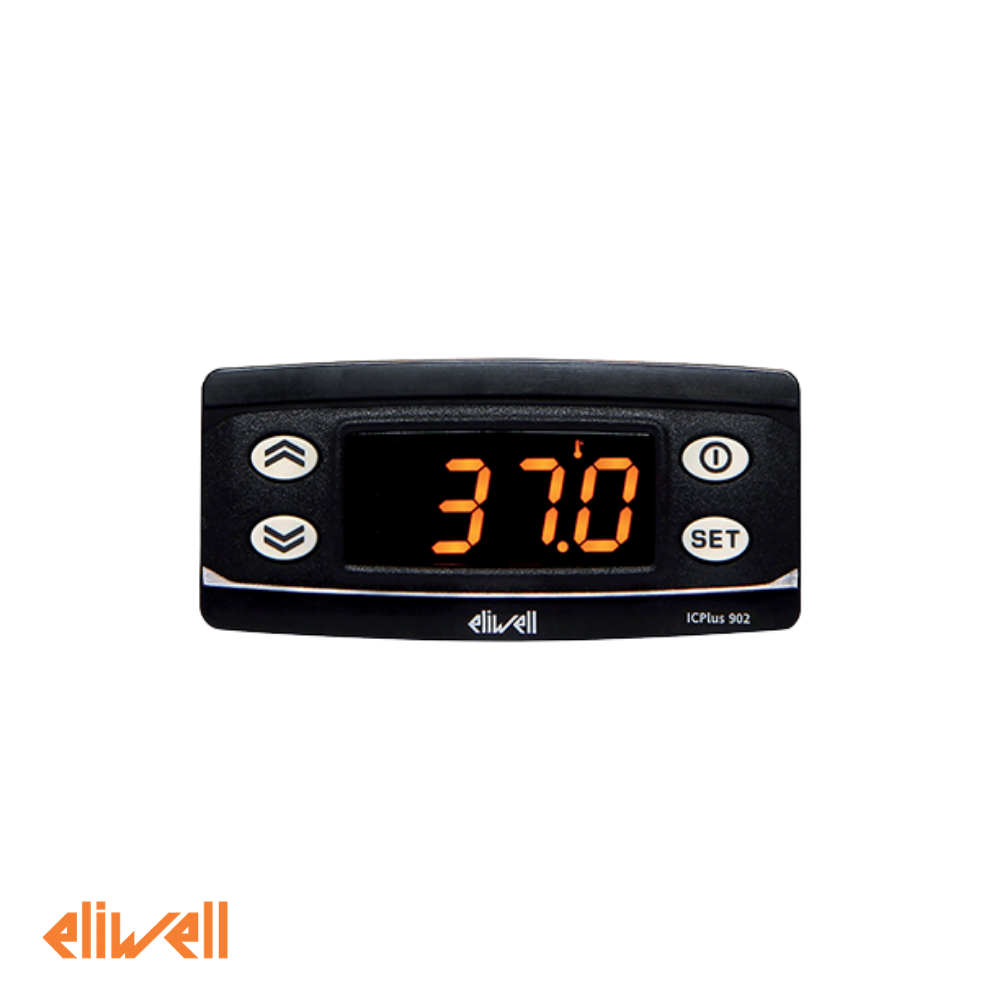

Digital Thermostat Controller - Eliwell IC Plus 902

Power Supply: 230VAC ±10%, 50/60 Hz

Power Consumption: 3W

Operating Temperature: 0 to +55°C

Storage Temperature: -30 to +85°C

Humidity: 10–90% RH (non-condensing)

Display: 3-digit LED

Resolution: 0.1°C or 1°C (configurable)

Accuracy: Better than ±0.5% F.S. + 1 digit

Measurement Range: -50°C to +140°C

Sensor Type: 1 × NTC or PTC temperature probe

Digital Inputs: None

Relay Outputs: 1 × SPDT relay (8(4)A 250VAC)

Communication: TTL port (USB Unicard / Televis / Modbus gateway)

Panel Cut-Out: 71 × 29mm

Controller Dimensions
